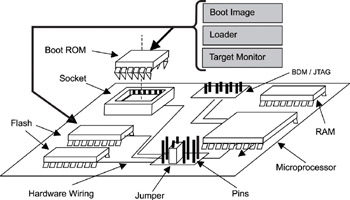

Figure 3.1: View of the target embedded system.
The embedded software for the final product is commonly stored in either ROM or the flash memory. The entire executable image is burned into the ROM or flash memory using special equipment. If ROM is used, the ROM chip is set into its socket on the target board. For embedded system boards that have both ROM and flash memory, the next step is to set the necessary jumpers. Jumpers are the part of the target board's wiring that controls which memory chip the processor uses to start executing its first set of instructions upon reboot. For example, if the image is stored in the flash memory and the jumpers are set to use the flash memory, the processor fetches its first instruction from the starting address where the flash is mapped. Therefore, set the jumpers appropriately according to the image storage.
This final production method, however, is impractical during the development stage because developers construct software in incremental steps with high frequency. The process is interactive in that a portion of the code is written, debugged, and tested, and the entire process then repeats for the new code. Reprogramming the EEPROM or the flash memory each time the code changes due to bugs or code addition is time consuming. The methods for downloading the image over a serial or a network connection or for downloading the image through a JTAG or BDM interface solve this problem by transferring the image directly into the target system's RAM memory.
3.2.1 Embedded Loader
loaderAfter the loader is written, it is programmed into the ROM. Part of the same ROM chip is occupied by the boot image. At a minimum, this boot image (typically written by a hardware engineer) consists of the code that executes on system power up. This code initializes the target hardware, such as the memory system and the physical RAM, into a known state. In other words, the boot image prepares the system to execute the loader. The loader begins execution after this boot image completes the necessary initialization work.
For this transfer method to work, a data transfer protocol, as well as the communication parameters, must be agreed upon between the host utility and the target loader. The data transfer protocol refers to the transfer rules. For example, a transfer protocol might be that the image transfer request should be initiated from the loader to the host utility; in which case, the host utility sends out the image file size followed by the actual image, and the loader sends an acknowledgement to the host utility upon completion. Data transfer rate, such as the baud rate for the serial connection,
and per packet size are examples of communication parameters. The loader and the utility program operate as a unit, which is often capable of using more than one type of connection. At a minimum, the transfer takes place over the serial connection. More sophisticated loaders can download images over the network, for example, over the Ethernet using protocols such as the Trivial File Transfer Protocol (TFTP) or the File Transfer Protocol (FTP). In this case, the host utility program is either the TFTP server or the FTP server respectively.
Both proprietary and well-known transfer protocols can be applied in either the serial or the network connection, but more commonly proprietary protocols are used with a serial connection.
The loader downloads the image directly into the RAM memory. The loader needs to understand the object file format (for example, the ELF format) because, as discussed in Chapter 2, the object file contains information such as the load address, which the loader uses for section placement.
The loader transfers control to the downloaded image after the transfer completes. A loader with flash programming capability can also transfer the image into the flash memory. In that case, the board jumpers must be set appropriately so that the processor executes out of flash memory after the image download completes.
A loader can be part of the final application program, and it can perform other functions in addition to downloading images, as discussed in more detail later in this chapter.
3.2.2 Embedded Monitor
monitor· initializing the required peripheral devices, for example, the serial interface and the system timer chip for memory refresh, at a minimum,
· initializing the memory system for downloading the image, and
· initializing the interrupt controller and installing default interrupt handlers.
The monitor has a well-defined user interface accessible through a terminal emulation program over the serial interface. The monitor defines a set of commands allowing the developer to
· download the image,
· read from and write to system memory locations,
· read and write system registers,
· set and clear different types of breakpoints,
· single-step instructions, and
· reset the system.
The way in which the monitor downloads the image from the host system over the serial or network connection is similar to how the loader does it. The monitor is capable of downloading the image into either the RAM memory or the flash memory. In essence, the monitor has both the boot image and the loader functionalities incorporated but with the added interactive debug capability. The monitor is still present while the newly downloaded image executes. A special keystroke on the host system, for example, CTRL+D, interrupts the program execution and reactivates the monitor user interface so the developer can conduct interactive debugging activities.
