Геннадий Иванович Ничипорук - Anatomy of bone system. The manual for medical students / Анатомия костной системы. Учебное пособие для медицинских вузов стр 7.

2.3. Thoracic Vertebrae

The thoracic vertebrae, vertebrae thoracicae (Th

I

XII

Most vertebrae have two demi-facets. They are directly in front of the pedicle of the vertebral arch: one – at superior edge, the other – at inferior edge. They are called the superior costal facet and inferior costal facet, respectively, fovea costalis superior et fovea costalis inferior. Each such facet (demi-facet to be more precise) of one vertebra, together with the nearest demi-facet of the adjacent vertebra, form an articular area for articulation with the head of the rib. An exception is the I vertebra: it has a complete facet to articulate with the I rib, and a demi-facet to articulate with the II rib. The X vertebra has only the superior demi-facet for articulation with the X rib. The XI and XII vertebrae have one complete facet for articulation with the corresponding ribs.

The articular processes of the thoracic vertebrae are located in the frontal plane. The articular surfaces of superior articular processes are directed backwards, the articular surfaces of the inferior articular processes are directed forwards. The transverse processes are directed laterally and backwards; their length increases from the I to the IX vertebra but then they become shorter. The ends of the transverse processes are thickened. They have a transverse costal facet, fovea costalis processus transversi, for articulation with the tubercle of the rib. The XI and XII vertebrae do not have such facet.

The spinous processes of the thoracic vertebrae are longer than the spinous processes of the cervical vertebrae; they are tilted downwards and lie on each other like tiles.

2.4. Lumbar Vertebrae

The distinctive feature of the lumbar vertebra, vertebrae lumbales (L

I

V

The superior articular process may have a rudimental tubercle named mammillary process, processus mamillaris. The lumbar vertebra`s transverse processes are formed by fusion of rudimental ribs with the transverse processes of the vertebra. They are located in the frontal plane, their ends are tilted backwards. Often the accessory process, processus accessorius, may be present at the base of the transverse process. The spinous processes are short and flat, their ends are thickened; they are located almost at the same level with the vertebral body and directed backwards.

Fig. 2.5. Lumbar vertebra (lateral aspect):

1 – vertebral body (corpus vertebrae); 2 – superior articular process (processus articularis superior); 3 – spinous process (processus spinosus); 4 – inferior articular process (processus articularis inferior); 5 – transverse process (processus transversus)

2.5. Sacrum

The sacrum, os sacrum (S

I

V

Fig. 2.6. Sacrum and coccyx:

a – anterior aspect: 1 – anterior sacral foramina (foramina sacralia anteriora); 2 – transverse lines (lineae transversae)

b – posterior aspect: 3 – coccygeal horn (cornu coccygeum); 4 – sacral horn (cornu sacrale); 5 – median sacral crest (crista sacralis mediana); 6 – auricular surface (facies auricularis); 7 – lateral sacral crest (crista sacralis lateralis); 8 – sacral tuberosity (tuberositas ossis sacri); 9 – posterior sacral foramina (foramina sacralia posteriora); 10 – intermediate sacral crest (crista sacralis intermedia); 11 – sacral hiatus (hiatus sacralis)

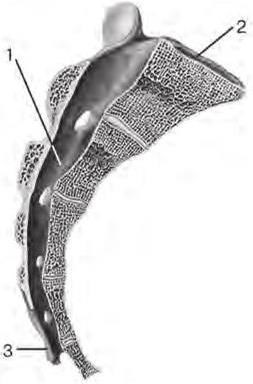

Fig. 2.7.Sagittal section of sacrum:

1 – sacral canal (canalis sacralis), 2 – base of sacrum (basis ossis sacri); 3 – sacral horn (cornu sacrale)

Fig. 2.8. Horizontal section of sacrum:

1 – posterior sacral foramen (foramen sacrale posterius); 2 – sacral canal (canalis sacralis); 3 – median sacral crest (crista sacralis mediana); 4 – intervertebral foramen (foramen intervertebrale)

The superior articular processes, processus articulares superiores, project from the base of the sacrum; they articulate with the inferior articular processes of the V lumbar vertebra. The place of the junction of the sacrum with the body of the V lumbar vertebra bulges forwards, and is known as the sacral promontory, promontorium.

Four transverse lines, lineae transversae, running horizontally, are visible on the pelvic surface of the sacrum. They are the traces of the fusion of the sacral vertebral bodies. The anterior sacral foramina, foramina sacralia anteriora, open on the right and left ends of these lines.

There are five longitudinal crests on the dorsal surface of the sacrum. The unpaired median sacral crest, crista sacralis mediana, is formed by the fusion of the spinous processes. There is the paired intermediate sacral crest, crista sacralis intermedia, on each side of it. The intermediate sacral crest represents fused articular processes of the sacral vertebrae. There are the posterior intermediate foramina, foramina sacralia posteriora, near the intermediate crests. The paired lateral sacral crest, crista sacralis lateralis, lies laterally to these foramina. It is the trace of the fusion of the transverse processes and rudimental ribs. The paired lateral parts, partes laterales, with the auricular surfaces, facies auriculares, are located outside the posterior sacral foramina. They articulate with the auricular surfaces of the pelvic bone. There is the sacral tuberosity, tuberositas ossis sacri, behind the auricular surfaces. It is connected by ligaments with the tuberosity of the pelvic bone. In the process of the fusion of the sacral vertebrae into a single bone, the vertebral foramina form the sacral canal, canalis caralis (fig. 2.7). It terminates with the sacral hiatus, hiatus sacralis. The sacral horns, cornua sacralia, are on both sides of the hiatus. They are rudiments of the inferior articular processes. The anterior and posterior sacral foramina are connected with the sacral canal by the intervertebral foramina, foramina intervertebralia (fig. 2.8).

2.6. Coccyx

The coccyx, os coccygis (Co

I

III-V

2.7. Anomalies and Developmental Defects of Vertebrae

Anomalies and developmental defects may be classified according to the following criteria:

I. Vertebral size anomalies:

1. Microspondylia – reduction in size of one or more vertebrae.

2. Brachyspondylia – reduction in width of one or more vertebrae.

3. Platyspondylia – flattening of some vertebrae which get a truncated cone shape.

4. Macrospondylia – increase in size of some vertebrae.

II. Slit-like Defects of Vertebrae:

1. Splitting of vertebral bodies (anterior splitspine, spina bifida anterior) – a slit-like defect of the vertebral body located more often in the sagittal plane.

2. Splitting of the vertebral arch (posterior split spine, spina bifida posterior) – a slit-like defect of the vertebral arch (near a spinous process or on its place).

3. Spondylolysis – in this case, the vertebral body is not fused with the pedicles of the vertebral arch: this anomaly may be observed either on one or on both sides, it happens most often in the V lumbar vertebra or in the I sacral vertebra; in case of bilateral spondylolysis, the posterior part of the arch with the inferior articular processes are separated from the pedicles of the arch with the superior articular processes.

4. Spondylolisthesis – displacement of the body of the upper vertebra frontwards (very seldom – backwards relative to the lower vertebra. Most often it occurs after compressive fracture of a vertebral body when the vertebra becomes wedge-shaped.

5. Rachischisis – in this case the vertebral body is not fused with the pedicles of the vertebral arch, and the vertebral arch is splitted.
