The definition of an oblique is understood by the obliquity of the shankes: whereupon also it appeareth; That an oblique angle is unequall to an homogeneall right angle: Neither indeed may oblique angles be made equall by any lawe or rule: Because obliquity may infinitly bee both increased and diminished.
15. An oblique angle is either Obtuse or Acute.
One difference of Obliquity wee had before at the 9 e ij. in a line, to witt of a periphery and an helix; Here there is another dichotomy of it into obtuse and acute: which difference is proper to angles, from whence it is translated or conferred upon other things and metaphorically used, as Ingenium obtusum, acutum; A dull, and quicke witte, and such like.
16. An obtuse angle is an oblique angle greater then a right angle. 11. d j.
Obtusus, Blunt or Dull; As here aei. In the definition the genus of both Species or kinds is to bee understood: For a right lined right angle is greater then a sphearicall right angle, and yet it is not an obtuse or blunt angle: And this greater inequality may infinitely be increased.
17. An acutangle is an oblique angle lesser then a right angle. 12. d j.
Acutus, Sharpe, Keene, as here aei. is. Here againe the same genus is to bee understood: because every angle which is lesse then any right angle is not an acute or sharp angle. For a semicircle and sphericall right angle, is lesse then a rectilineall right angle, and yet it is not an acute angle.
The fourth Booke, which is of a Figure
1. A figure is a lineate bounded on all parts.
So the triangle aei. is a figure; Because it is a plaine bounded on all parts with three sides. So a circle is a figure: Because it is a plaine every way bounded with one periphery.
2. The center is the middle point in a figure.

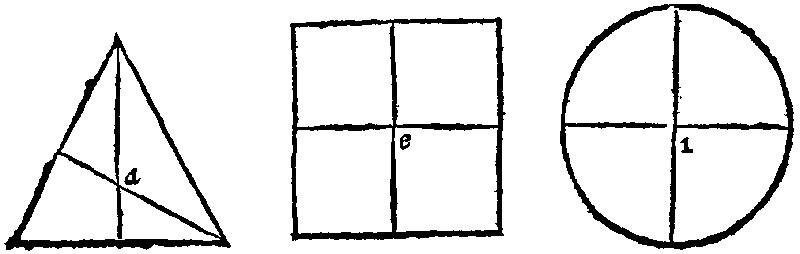

In some part of a figure the Center, Perimeter, Radius, Diameter and Altitude are to be considered. The Center therefore is a point in the midst of the figure; so in the triangle, quadrate, and circle, the center is, aei.
Centrum gravitatis, the center of weight, in every plaine magnitude is said to bee that, by the which it is handled or held up parallell to the horizon: Or it is that point whereby the weight being suspended doth rest, when it is caried. Therefore if any plate should in all places be alike heavie, the center of magnitude and weight would be one and the same.
3. The perimeter is the compasse of the figure.
Or, the perimeter is that which incloseth the figure. This definition is nothing else but the interpretation of the Greeke word. Therefore the perimeter of a Triangle is one line made or compounded of three lines. So the perimeter of the triangle a, is eio. So the perimeter of the circle a is a periphery, as in eio. So the perimeter of a Cube is a surface, compounded of sixe surfaces: And the perimeter of a spheare is one whole sphæricall surface, as hereafter shall appeare.
4. The Radius is a right line drawne from the center to the perimeter.
Radius, the Ray, Beame, or Spoake, as of the sunne, and cart wheele: As in the figures under written are ae, ai, ao. It is here taken for any distance from the center, whether they be equall or unequall.
5. The Diameter is a right line inscribed within the figure by his center.
As in the figure underwritten are ae, ai, ao. It is called the Diagonius, when it passeth from corner to corner. In solids it is called the Axis, as hereafter we shall heare.
Therefore,
6. The diameters in the same figure are infinite.
Although of an infinite number of unequall lines that be only the diameter, which passeth by or through the center notwithstanding by the center there may be divers and sundry. In a circle the thing is most apparent: as in the Astrolabe the index may be put up and downe by all the points of the periphery. So in a speare and all rounds the thing is more easie to be conceived, where the diameters are equall: yet notwithstanding in other figures the thing is the same. Because the diameter is a right line inscribed by the center, whether from corner to corner, or side to side, the matter skilleth not. Therefore that there are in the same figure infinite diameters, it issueth out of the difinition of a diameter.
And
7. The center of the figure is in the diameter.
As here thou seest a, e, i this ariseth out of the definition of the diameter. For because the diameter is inscribed into the figure by the center: Therefore the Center of the figure must needes be in the diameter thereof: This is by Archimedes assumed especially at the 9, 10, 11, and 13 Theoreme of his Isorropicks, or Æquiponderants.
This consectary, saith the learned Rod. Snellius, is as it were a kinde of invention of the center. For where the diameters doe meete and cutt one another, there must the center needes bee. The cause of this is for that in every figure there is but one center only: And all the diameters, as before was said, must needes passe by that center.
And
8. It is in the meeting of the diameters.
As in the examples following. This also followeth out of the same definition of the diameter. For seeing that every diameter passeth by the center: The center must needes be common to all the diameters: and therefore it must also needs be in the meeting of them: Otherwise there should be divers centers of one and the same figure. This also doth the same Archimedes propound in the same words in the 8. and 12 theoremes of the same booke, speaking of Parallelogrammes and Triangles.
9. The Altitude is a perpendicular line falling from the toppe of the figure to the base.
Altitudo, the altitude, or heigth, or the depth: [For that, as hereafter shall bee taught, is but Altitudo versa, an heighth with the heeles upward.] As in the figures following are ae, io, uy, or sr. Neither is it any matter whether the base be the same with the figure, or be continued or drawne out longer, as in a blunt angled triangle, when the base is at the blunt corner, as here in the triangle, aei, is ao.
