experiment with procedures that change the contents of home directories. To undo the results of your experiments, simply unmount the snapshot, remount the original directory, and then destroy the snapshot.
To create a snapshot of a LV using the graphical tool, select the LV in the left pane, and then click on the Create Snapshot button at the bottom of the middle pane. You will see the dialog box shown in Figure 6-5 .

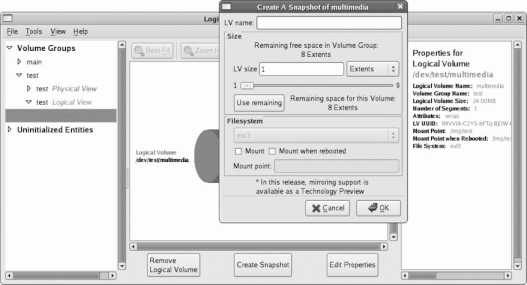

Figure 6-5. Creating a snapshot
This dialog looks a lot like the dialog used to create a logical volume ( Figure 6-4 ), and it shouldbecause a snapshot is a special type of LV. Enter a name for the snapshot; I recommend the name of the origin LV, with -snap added to the end. For example, a snapshot of the multimedia LV would be called multimedia-snap .
Next, set the size of the snapshot. The snapshot will appear to be the same size as the origin LV; the size setting here is used to reserve disk space to track the differences between the origin LV and the snapshot. Therefore, if you have a 100 GB LV and the data in that LV changes slowly, a 1 GB snapshot might be reasonable; but if the data in that LV changes rapidly, you will need a much larger snapshot size.
Select the Mount and "Mount when rebooted" checkboxes, and then enter the "Mount point" that you wish to use (such as /backup/media ).
You can view the amount of storage used by the snapshot by selecting the snapshot LV in the left pane, then looking at the snapshot usage in the right pane. The usage is reported as a percentage of the total snapshot size and increases as data is changed in the origin or snapshot volumes. If it approaches 100 percent, you can increase the size of the snapshot LV in the same way that you would resize a regular LV.
6.1.1.2.3. Removing a logical volume or a snapshot
6.1.1.2.4. Adding a partition
The first step is to make the partition a physical volume. Select the disk partition you wish to use under Uninitialized Entities in the left pane, and then click the Initialize Entity button at the bottom of the center pane. A dialog box will warn you of possible data loss; double-check the partition information, and then click Yes if you are certain that you will not lose any critical data.
Be extremely careful with this option because it will delete all of the data on an entire disk partition. If you select the wrong partition on a dual-boot system, you could wipe out all of the data used by the other operating system (such as Windows).fdisk fdisk /dev/sdb /dev/sdb1
# fdisk/dev/sdb
fdisk accepts single-letter commands. Enter p to print the partition table:
Command (m for help): p
Disk /dev/sdb: 8 MB, 8192000 bytes
4 heads, 16 sectors/track, 250 cylinders
Units = cylinders of 64 * 512 = 32768 bytes
Device Boot Start End Blocks Id System
/dev/sdb1 * 1 250 7987+ 1 FAT12
There is only one partition on this particular disk, and it is bootable (note the * in the Boot column). Use the a (activate) command to toggle the boot flag:
Command (m for help): a
Partition number (1-4):
1
Then use w to write the partition table to disk and exit:
Command (m for help): w
The partition table has been altered!
Calling ioctl( ) to re-read partition table.
Syncing disks.
You can now rerun the graphical LVM administration tool and initialize the partition for use with LVM. This gives you a new physical volume that you can work with.
The next step is to add the new physical volume to the volume group. You'll see the newly initialized partition under Unallocated Volumes in the left pane. Click on it, and then click on the button labeled "Add Volume to existing Volume Group." A menu of volume groups will appear; select the one to add it to, and then click Add.
Once you've added a PV, you can use the extra space to create new logical volumes or grow an existing volume.
6.1.1.2.5. Removing a partition
6.1.1.3. Managing LVMs from the command line
The LV must be created before the filesystem can be created.
The filesystem must be removed before the LV is destroyed.
When growing an LV and filesystem, the LV must be grown first.
When shrinking an LV and filesystem, the filesystem must be reduced first.
Fedora's LVM2 system provides the lvm command for administration. Typing lvm by itself starts a specialized shell:
# lvm
lvm>
At the lvm> prompt, you can enter any of the subcommands shown in Table 6-1.
Table 6-1. LVM subcommands
| LVM subcommand | Description |
|---|---|
| vgs | Displays details about volume groups (compact) |
| pvs | Displays details about physical volumes (compact) |
| lvs | Displays details about logical volumes (compact) |
| vgdisplay | Displays details about volume groups (verbose) |
| pvdisplay | Displays details about physical volumes (verbose) |
| lvdisplay | Displays details about logical volumes (verbose) |
| vgcreate | Creates a volume group |
| vgremove | Removes a volume group |
| pvcreate | Prepares a block device (such as a disk partition) for inclusion in a volume group by adding a disk label to the start of the block device |
| pvremove | Wipes out the disk label created by pvcreate |
| vgextend | Adds a physical volume to a volume group |
| vgremove | Removes a physical volume from a volume group |
| pvmove | Migrates data from one physical volume to another |
| lvcreate | Creates a logical volume or snapshot LV |
| lvextend | Grows a logical volume |
| lvreduce | Shrinks a logical volume |
| lvresize | Grows or shrinks a logical volume |
| vgscan | Scans block devices for volume groups (necessary when using a rescue-mode boot) |
